Hydraulic Hinges

Name: Hydraulic Hinges
Brand: Goel Industries
Price: 199 INR
Availability: InStock

Hydraulic Hinges Specification

Height
110 mm

Finish Type
Polished

Operating Temperature
-20C to 80C

Operation Type
Soft Closing

Thickness
1.2 mm

Capacity
Up to 5 Kg per hinge

Tensile Strength
High

Usage & Applications
Home, Office, Modular Furniture

Security Features
Soft Close Mechanism

Weather Resistance
Yes

Width
35 mm

Function
Automatic Door Closing

Surface Finish
Nickel Plated

Anti Corrosion
Yes

Load Capacity
15,000 cycles

Standard
ISO 9001

Coating Type
Anti-Corrosive

Product Type
Hydraulic Hinge

Material
Stainless Steel

Size
Full Overlay

Weight
96 g

Color
Silver

Application
Cabinet Doors, Wardrobes, Kitchen Cabinets

Design Type
European Style

Mounting Type
Concealed

Product Model
Standard Hydraulic Hinge

Installation Type
Screw Mount

Locking Type
Clip-on Detachable

Opening Angle
110 Degrees

Packaging Type
Box Packed

Hole Diameter
35 mm cup

Adjustment Feature
3-way adjustable (Depth, Height, Side)

Closing Speed
Controlled Hydraulic Damping

Noise Level
Soft Closing, Less than 20dB

Durability
Tested for 50,000 Opening/Closing Cycles

Springs
Double Spring Mechanism

About Hydraulic Hinges

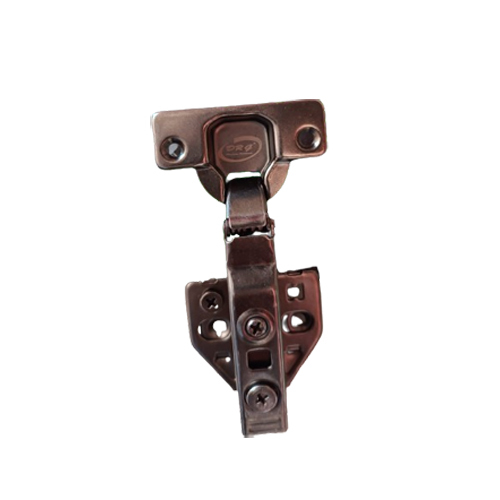

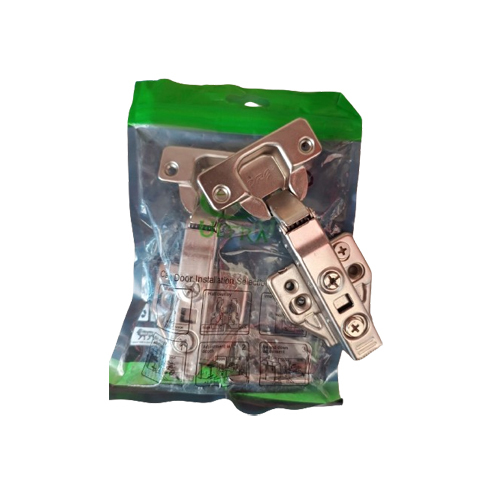

Ms-2d , Ms-3d , ss-2d , ss -3d

Hydraulic hinges use an internal oil-filled chamber to control door movement, providing a smooth, quiet, soft-close action by managing speed and force, preventing slamming, unlike traditional hinges. They work by fluid dynamics, where hydraulic fluid moves through small passages, cushioning the door's closing motion

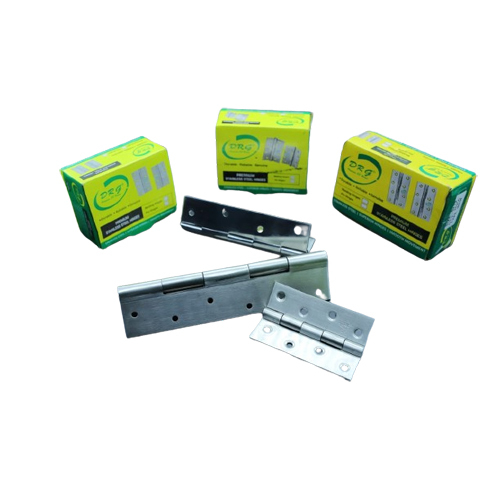

A hinge has two plates called 'leaves' made of metal or another sturdy material. These leaves are joined in the middle by a pin that runs through the curved ends known as the knuckles. The pin joins the knuckles together in a line and it acts as the pivot point (a point around which something turns).

Precision Engineering for Smooth Operation

Combining a 110-degree opening angle with full overlay design, this hydraulic hinge enables wide and convenient cabinet access. The precise 3-way adjustment ensures accurate alignment, making installation and fit adjustments effortless even for complex modular spaces.

Soft Closing and Ultra-Quiet Performance

Equipped with a state-of-the-art hydraulic damping system and double spring mechanism, this hinge guarantees a gentle, controlled closing. The noise level stays below 20dB, enhancing household and work environments by reducing disruptive sounds.

Rigid Durability and Corrosion Resistance

Manufactured from high-grade stainless steel and protected by an anti-corrosive nickel plating, this hinge excels in demanding environments. Its rust-proof properties and compliance with ISO 9001 ensure long-lasting, safe usage in all climates, from -20C to 80C.

FAQ's of Hydraulic Hinges:

Q: How does the soft closing mechanism in this hydraulic hinge work?

A: The hinge uses a hydraulic damping system combined with a double spring mechanism to provide automatic and controlled door closing. This soft closing feature ensures the door closes slowly and quietly, minimizing accidental slamming and keeping noise under 20dB.

Q: What applications are ideal for these 110-degree hydraulic hinges?

A: These hinges are designed for cabinet doors, wardrobes, and kitchen cabinets. They are widely used in home, office, and modular furniture settings due to their robust build, concealed mounting, and smooth, quiet operation.

Q: When should I choose this hinge over a standard mechanical hinge?

A: Opt for this hinge if you desire quieter operation, enhanced durability, and a sleek concealed look. The hydraulic soft close feature, high corrosion resistance, and ergonomic adjustability make it ideal for high-traffic and premium furniture installations.

Q: Where can this hinge be installed, and what is the installation process?

A: This hydraulic hinge is intended for full overlay cabinet configurations. Installation involves securing the hinge with screws using the pre-set 35mm cup hole. Its clip-on detachable mounting and three-way adjustment features simplify alignment and future adjustments.

Q: What are the benefits of the anti-corrosive, nickel-plated stainless steel build?

A: The nickel-plated, anti-corrosive stainless steel resists rust and retains its polished appearance even in humid or fluctuating temperatures (between -20C and 80C), guaranteeing long-term reliability and minimal maintenance for your cabinets.

Q: How does the three-way adjustment feature enhance usability?

A: The hinge allows for depth, height, and side adjustments after installation, ensuring a perfect fit and alignment. This flexibility simplifies installation and enables easy future modifications without removing the hinge.
